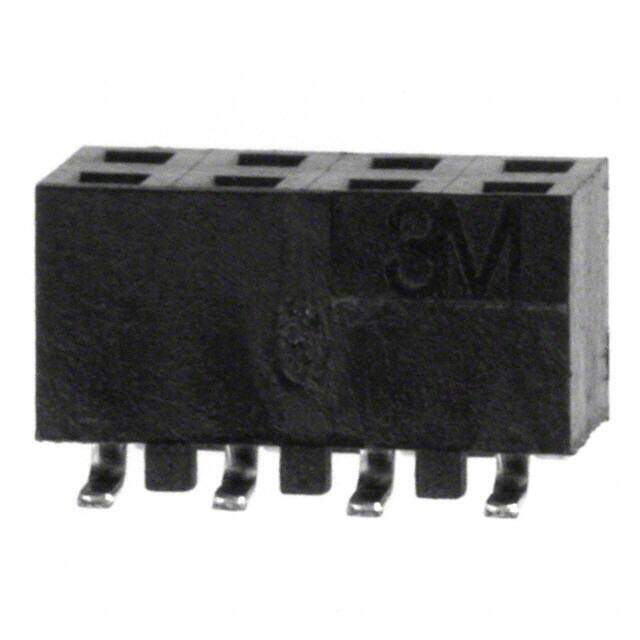

150208-2000-RB
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN 8POS 2MM SOCKET VERT PC SMD
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.800922
≥1 USD $1.800922
≥10 USD $1.698996
≥100 USD $1.602823
≥500 USD $1.512089
≥1000 USD $1.426506
Inventory: 7609
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Thermoplastic
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Tray
Published 2009
Series 1502
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 8
Color Black
Number of Rows 2
Gender Female
Voltage - Rated 500VDC
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Female Socket
Current Rating (Amps) 1A
Pitch 2.0066mm
Insulation Height 0.183 4.65mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Finish - Post Tin
Contact Gender Female
Housing Color Black
Dimensions
Height 4.65mm
Length 8mm
Width 3.84mm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Lead Free Lead Free
