690357280676
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

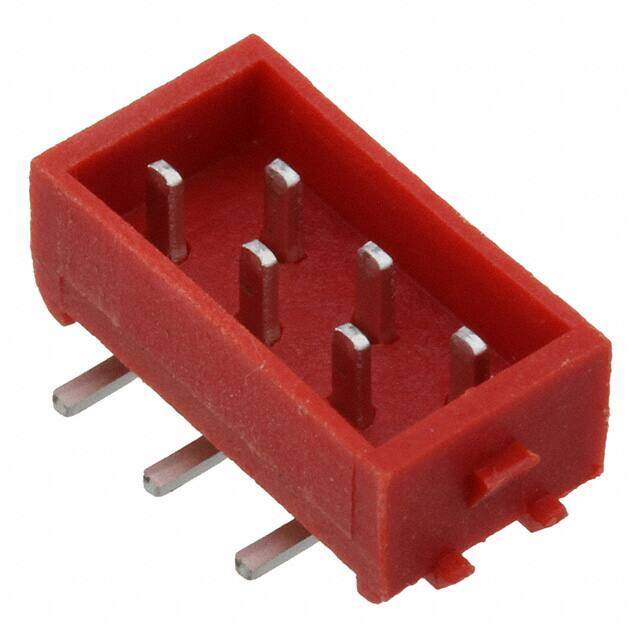

CONN HEADER SMD 6POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.26
Unit Price: USD $1.264038
≥1 USD $1.264038
≥10 USD $1.192493
≥100 USD $1.124988
≥500 USD $1.061316
≥1000 USD $1.001238
Inventory: 2391
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 6
Contact Shape Rectangular
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series WR-MM
Feature Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Color Red
Number of Rows 2
Gender Male
Voltage - Rated 100V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 1.5A per Contact
Pitch 2.54mm
Orientation Straight
Insulation Height 0.142 3.60mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Red
Row Spacing - Mating 0.059 (1.50mm)
Shrouding Shrouded - 4 Wall
Lead Pitch 2.54mm
Number of Contacts 6
Contact Finish - Post Tin
Operating Supply Voltage 100V
Contact Resistance 10mOhm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
