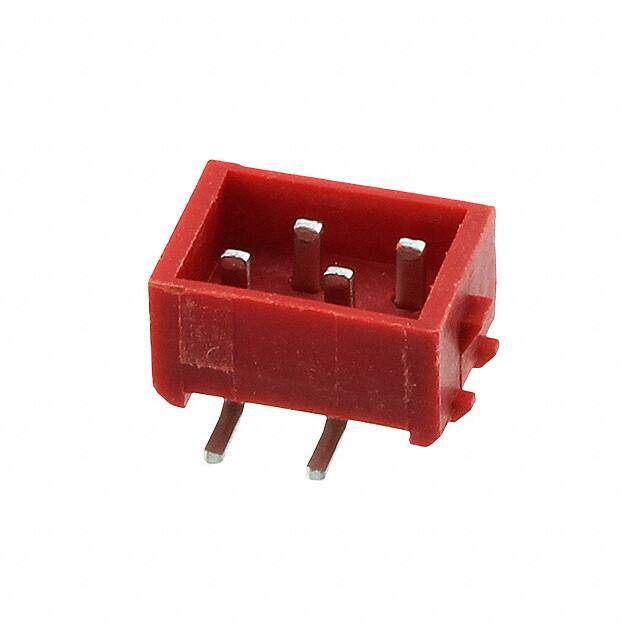

690357280476 image
Favorite
690357280476 image
Favorite

690357280476

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER SMD 4POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.030023
≥1 USD $1.030023
≥10 USD $0.971727
≥100 USD $0.916712
≥500 USD $0.864828
≥1000 USD $0.815882
Inventory: 4815
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0

Technical

Contact Resistance 10mOhm
Operating Supply Voltage 100V
Contact Finish - Post Tin
Number of Contacts 4
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.059 (1.50mm)
Insulation Color Red
Pitch - Mating 0.100 2.54mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.142 3.60mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 1.5A per Contact
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Pick and Place
Series WR-MM
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Rectangular
Number of Pins 4
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 12 Weeks
