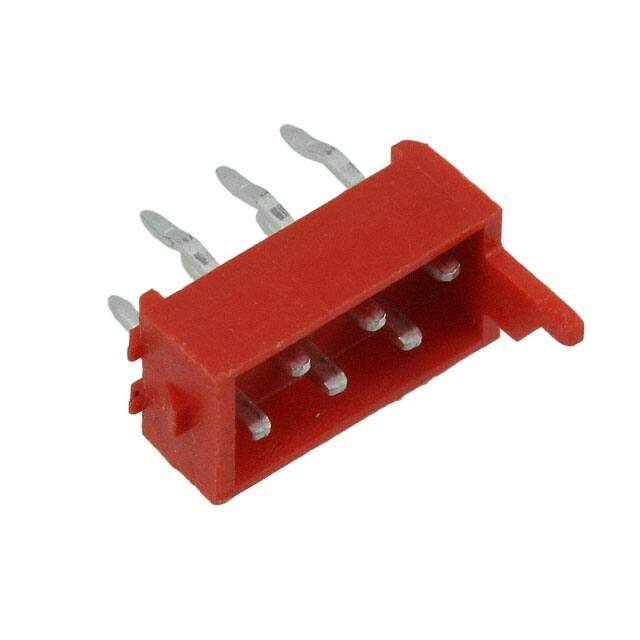

690357101072
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.762064
≥1 USD $0.762064
≥10 USD $0.718932
≥100 USD $0.678229
≥500 USD $0.639847
≥1000 USD $0.60363
Inventory: 1180
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Length 14.73mm
Height 7mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Operating Supply Voltage 100V
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 10
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.122 3.10mm
Row Spacing - Mating 0.059 (1.50mm)
Insulation Color Red
Pitch - Mating 0.100 2.54mm
Current Rating 1.5A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.276 7.00mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 1.5A per Contact
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 100V
Gender Male
Number of Rows 2
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-MM
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Rectangular
Number of Pins 10
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 12 Weeks
