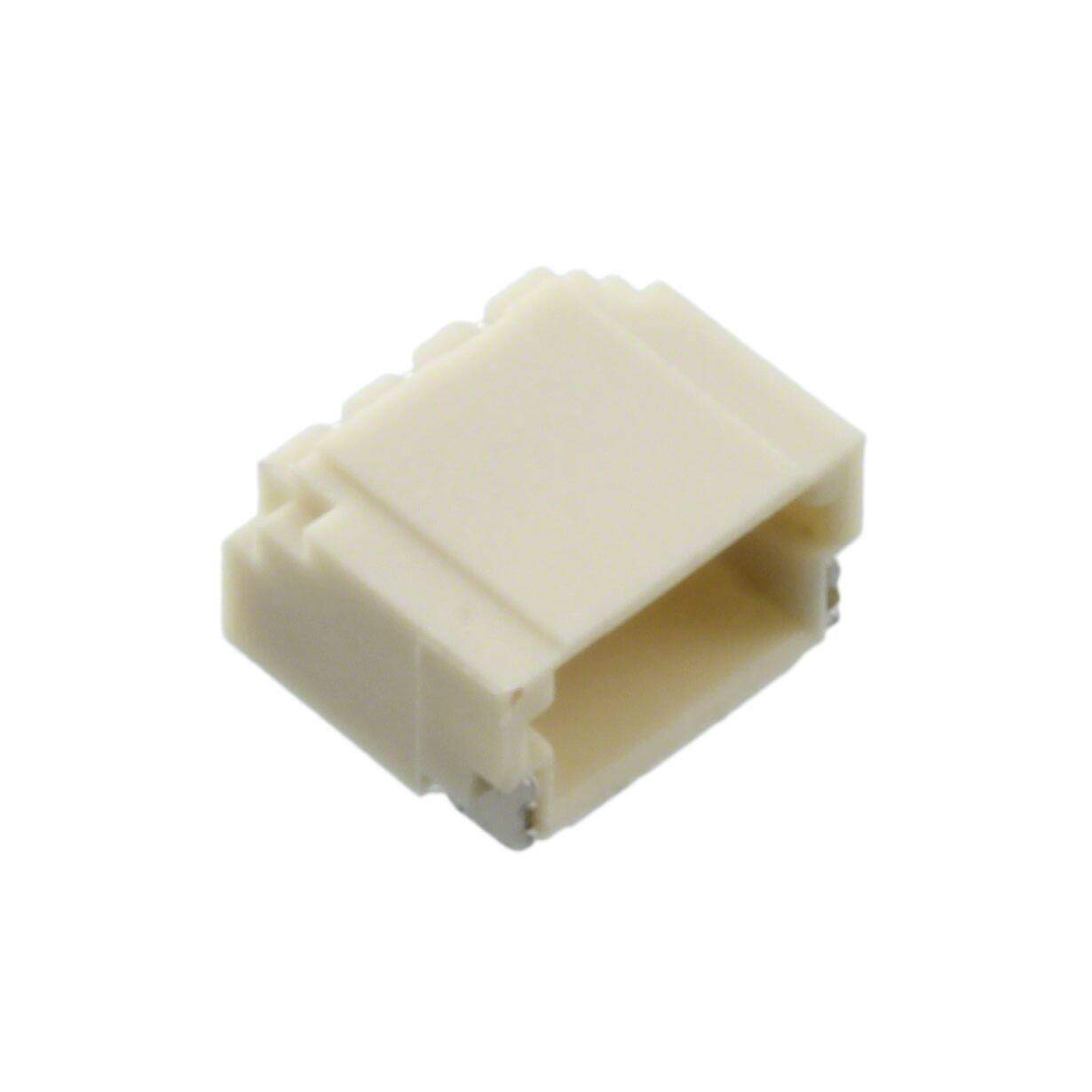

665103131822

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER SMD R/A 3POS 1MM
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.72007
≥1 USD $0.72007
≥10 USD $0.679317
≥100 USD $0.640865
≥500 USD $0.604587
≥1000 USD $0.570361
Inventory: 1141
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0

Technical

Contact Resistance 20mOhm
Operating Supply Voltage 50V
Contact Finish - Post Tin
Number of Contacts 3
Lead Pitch 1mm
Shrouding Shrouded - 4 Wall
Insulation Color Beige
Pitch - Mating 0.039 1.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.171 4.35mm
Pitch 990.6μm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Voltage - Rated 50V
Gender Male
Number of Rows 1
Color Beige
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Feature Solder Retention
Series WR-WTB
Packaging Cut Tape (CT)
Operating Temperature -25°C~85°C

Physical

Housing Material Nylon
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Tin
Contact Material Phosphor Bronze
