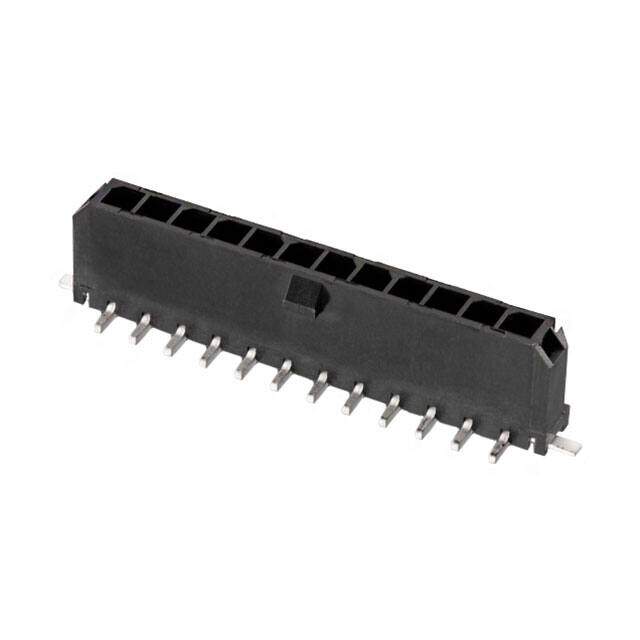

662303131822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 3POS 3MM
PDF
/
Buying Options
Total Price: USD $2.76
Unit Price: USD $2.755071
≥1 USD $2.755071
≥10 USD $2.599125
≥100 USD $2.451996
≥500 USD $2.313209
≥1000 USD $2.182275
Inventory: 7767
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 3
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series WR-MPC3
Feature Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 3
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 2.9972mm
Orientation Vertical
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Shrouding Shrouded - 4 Wall
Lead Pitch 3mm
Contact Finish - Post Tin
Operating Supply Voltage 250V
Contact Resistance 10mOhm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
