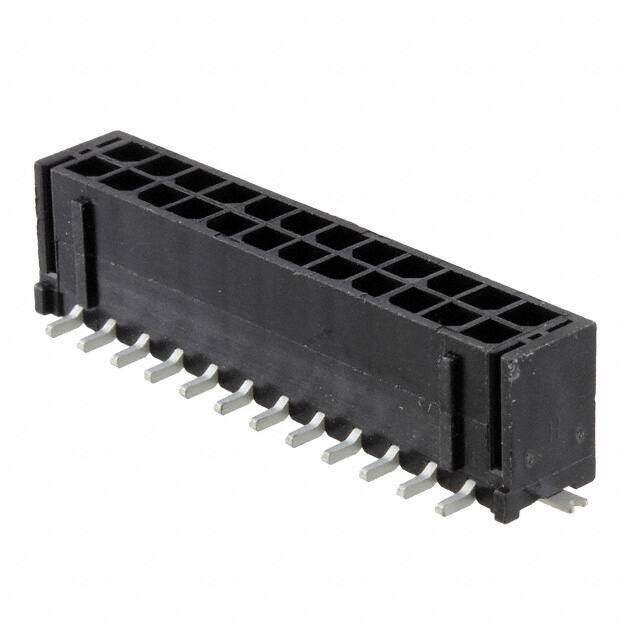

662024231822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 24POS 3MM
PDF
/
Buying Options
Total Price: USD $2.65
Unit Price: USD $2.649179
≥1 USD $2.649179
≥10 USD $2.499225
≥100 USD $2.357754
≥500 USD $2.224306
≥1000 USD $2.098397
Inventory: 4689
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 39.7mm
Length 11.4mm
Height 9.9mm
Technical
Contact Resistance 10mOhm
Operating Supply Voltage 250V
Contact Finish - Post Tin
Number of Contacts 24
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Orientation Vertical
Pitch 2.9972mm
Current Rating (Amps) 5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Number of Positions 24
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series WR-MPC3
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Number of Pins 24
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
