66201621022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

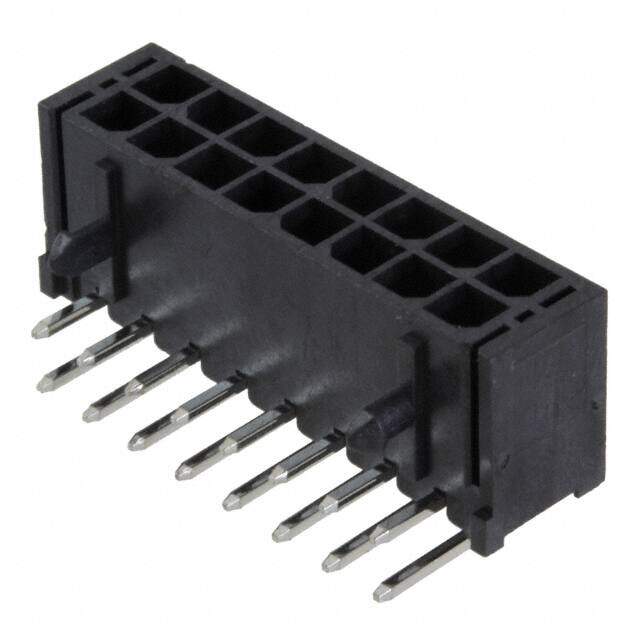

CONN HEADER R/A 16POS 3MM
PDF
/
Buying Options
Total Price: USD $3.02
Unit Price: USD $3.017044
≥1 USD $3.017044
≥198 USD $1.203929
≥506 USD $1.164542
≥990 USD $1.143536
Inventory: 5221
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 16
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series WR-MPC3
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 16
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 2.9972mm
Insulation Height 0.290 7.37mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Lead Pitch 3mm
Number of Contacts 16
Contact Finish - Post Tin
Operating Supply Voltage 250V
Contact Resistance 10mOhm
Dimensions
Height 8.9mm
Length 9.9mm
Width 27.7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
