662012236022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

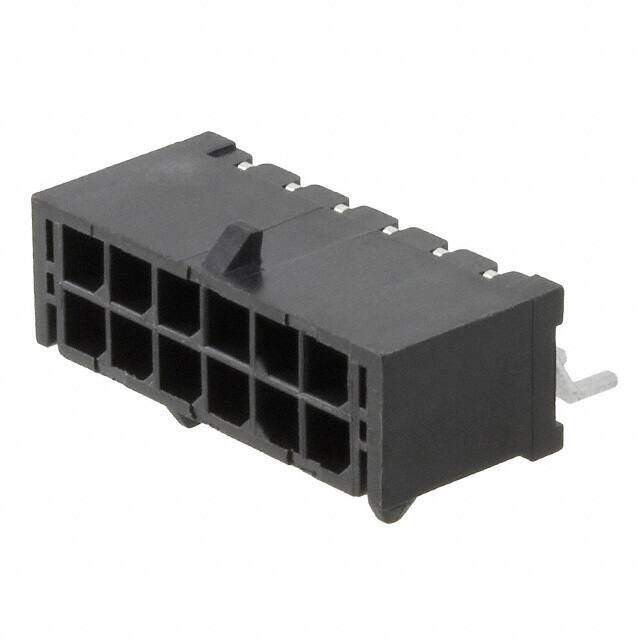

CONN HEADER SMD R/A 12POS 3MM
PDF
/
Inventory: 943
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 21.7mm
Length 9.9mm
Height 11.96mm
Technical
Contact Resistance 10mOhm
Operating Supply Voltage 250V
Contact Finish - Post Tin
Number of Contacts 12
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.290 7.37mm
Pitch 2.9972mm
Current Rating (Amps) 5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series WR-MPC3
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Number of Pins 12
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
