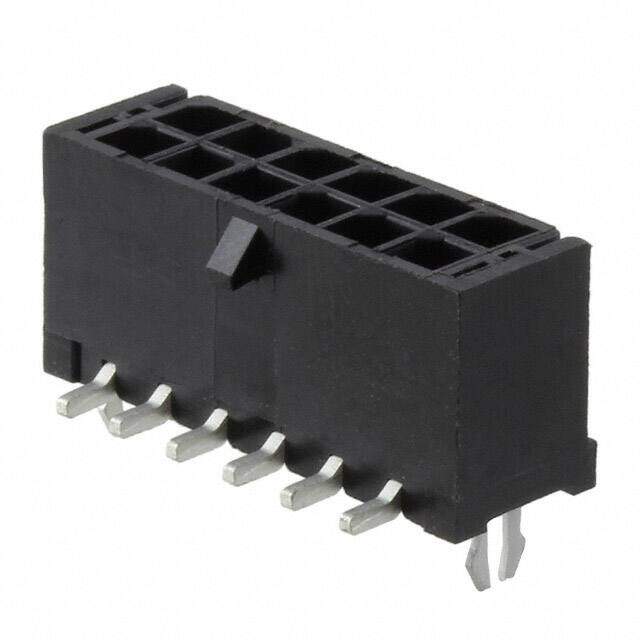

662012235922
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 12POS 3MM
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.6379
≥1 USD $1.6379
≥10 USD $1.54518
≥100 USD $1.457721
≥500 USD $1.375205
≥1000 USD $1.297365
Inventory: 3336
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 12
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series WR-MPC3
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 12
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 2.9972mm
Orientation Vertical
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Lead Pitch 3mm
Number of Contacts 12
Contact Finish - Post Tin
Operating Supply Voltage 250V
Contact Resistance 10mOhm
Dimensions
Height 13mm
Length 11.4mm
Width 21.7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
