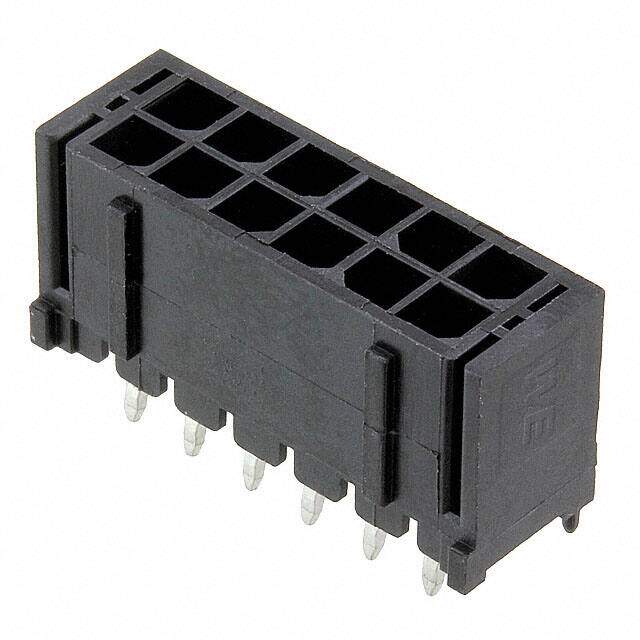

66201221122

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 12POS 3MM
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.791209
≥1 USD $0.791209
≥10 USD $0.746424
≥100 USD $0.704171
≥500 USD $0.664312
≥1000 USD $0.626704
Inventory: 3688
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0

Dimensions

Width 21.7mm
Length 7.36mm
Height 9.9mm

Technical

Contact Resistance 10mOhm
Operating Supply Voltage 250V
Contact Finish - Post Tin
Number of Contacts 12
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Orientation Vertical
Pitch 2.9972mm
Current Rating (Amps) 5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Number of Positions 12
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series WR-MPC3
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Number of Pins 12
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 15 Weeks
