66201111122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

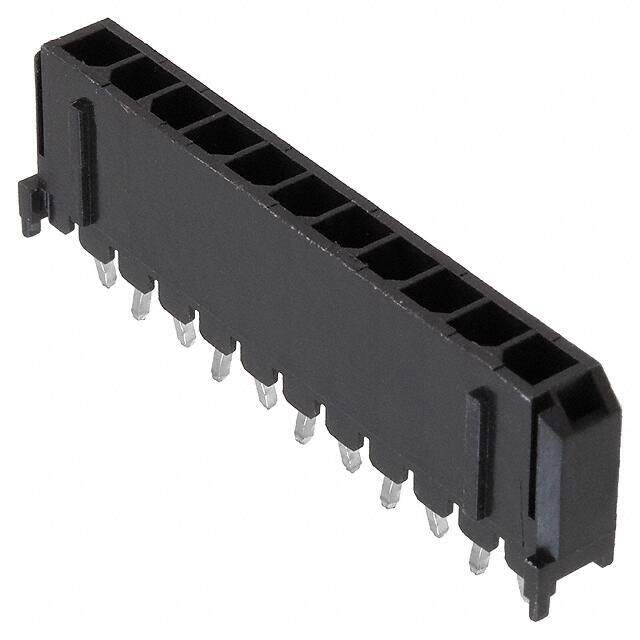

CONN HEADER VERT 11POS 3MM
PDF
/
Inventory: 5273
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 36.65mm
Length 4.37mm
Height 11mm
Technical
Contact Resistance 10mOhm
Operating Supply Voltage 250V
Contact Finish - Post Tin
Number of Contacts 11
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Orientation Vertical
Pitch 2.9972mm
Current Rating (Amps) 5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Number of Positions 11
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series WR-MPC3
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Number of Pins 11
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
