66201021122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

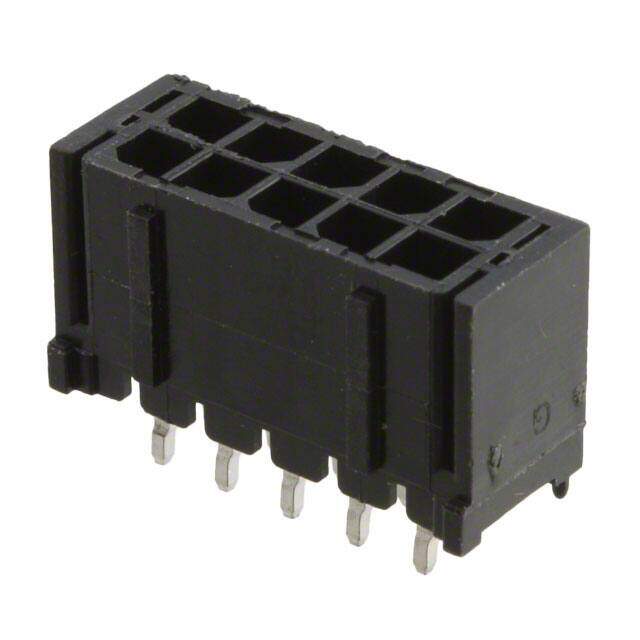

CONN HEADER VERT 10POS 3MM
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.785566
≥1 USD $0.785566
≥10 USD $0.741106
≥100 USD $0.699158
≥500 USD $0.659576
≥1000 USD $0.622245
Inventory: 7310
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 18.7mm
Length 18.7mm
Height 9.9mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Operating Supply Voltage 250V
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 10
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Orientation Vertical
Pitch 3mm
Current Rating (Amps) 5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 10
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series WR-MPC3
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Number of Pins 10
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
