662008231822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

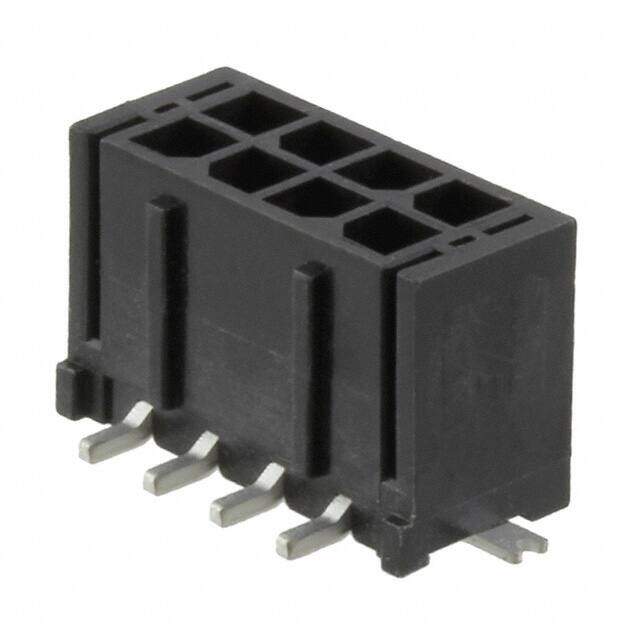

CONN HEADER SMD 8POS 3MM
PDF
/
Buying Options
Total Price: USD $1.29
Unit Price: USD $1.285663
≥1 USD $1.285663
≥10 USD $1.212887
≥100 USD $1.144231
≥500 USD $1.079464
≥1000 USD $1.01836
Inventory: 9290
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 15.7mm
Length 11.4mm
Height 9.9mm
Technical
Contact Resistance 10mOhm
Operating Supply Voltage 250V
Contact Finish - Post Tin
Number of Contacts 8
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.390 9.91mm
Orientation Vertical
Pitch 2.9972mm
Current Rating (Amps) 5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series WR-MPC3
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Number of Pins 8
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
