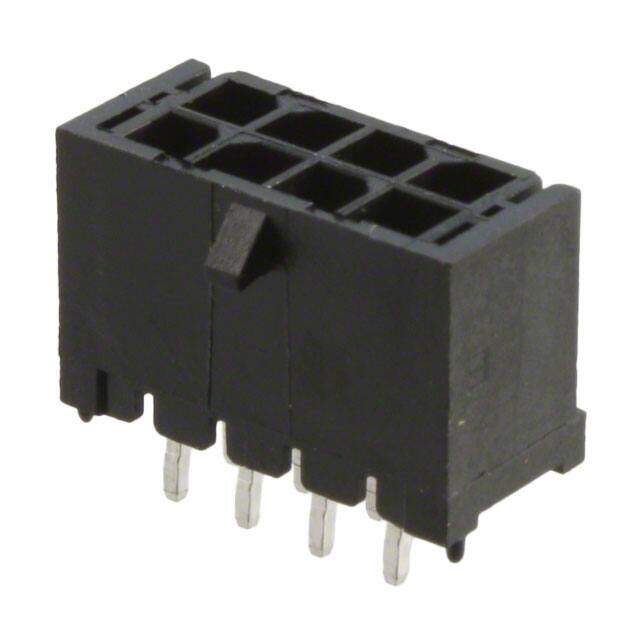

66200821122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 8POS 3MM
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.577367
≥1 USD $0.577367
≥10 USD $0.544685
≥100 USD $0.513857
≥500 USD $0.484769
≥1000 USD $0.457335
Inventory: 1184
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 8
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series WR-MPC3
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -25°C
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 3mm
Orientation Vertical
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Lead Pitch 3mm
Number of Contacts 8
Contact Finish - Post Tin
Contact Gender Male
Operating Supply Voltage 250V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 9.9mm
Length 15.7mm
Width 15.7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
