66200611122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

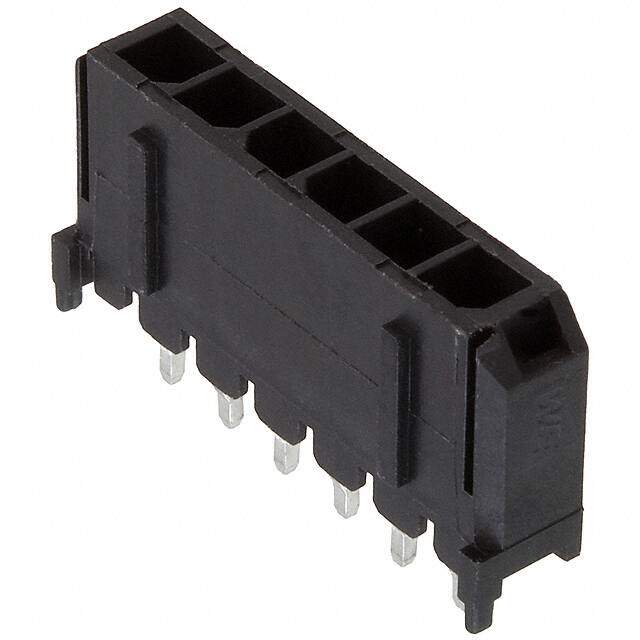

CONN HEADER VERT 6POS 3MM
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.494182
≥1 USD $0.494182
≥10 USD $0.466214
≥100 USD $0.439824
≥500 USD $0.414927
≥1000 USD $0.391441
Inventory: 1187
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 6
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-MPC3
Feature Board Guide
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Kinked Pin, Solder
Connector Type Header
Number of Positions 6
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 2.9972mm
Orientation Vertical
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Lead Pitch 3mm
Number of Contacts 6
Contact Finish - Post Tin
Operating Supply Voltage 250V
Contact Resistance 10mOhm
Dimensions
Height 11mm
Length 4.37mm
Width 21.65mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
