662004231822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

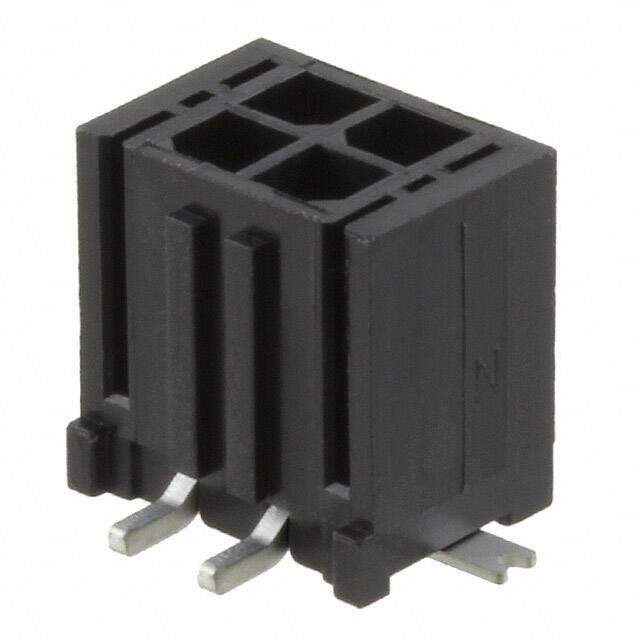

CONN HEADER SMD 4POS 3MM
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.971519
≥1 USD $0.971519
≥10 USD $0.916527
≥100 USD $0.864644
≥500 USD $0.815702
≥1000 USD $0.769535
Inventory: 7564
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 4
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-MPC3
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 5A
Pitch 2.9972mm
Orientation Vertical
Insulation Height 0.390 9.91mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Shrouding Shrouded - 4 Wall
Lead Pitch 3mm
Number of Contacts 4
Contact Finish - Post Tin
Contact Gender Male
Operating Supply Voltage 250V
Contact Resistance 10mOhm
Dimensions
Height 9.9mm
Length 11.4mm
Width 9.7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
