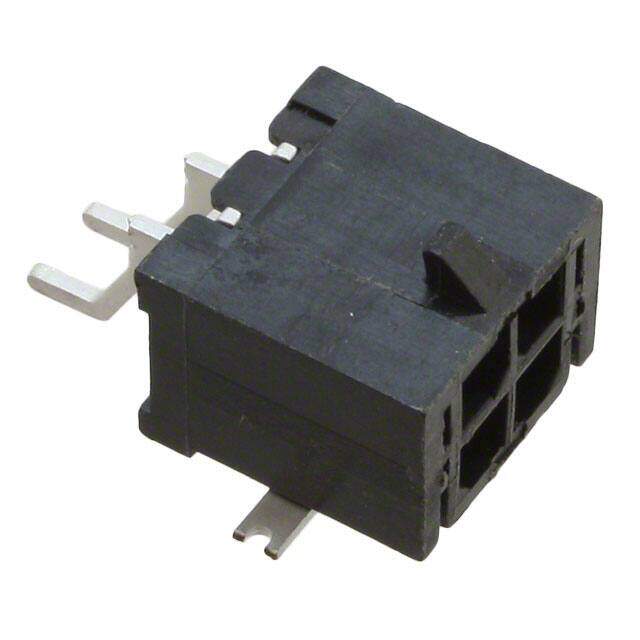

662004231722
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 4POS 3MM
PDF
/
Buying Options
Total Price: USD $1.32
Unit Price: USD $1.316991
≥1 USD $1.316991
≥10 USD $1.242437
≥100 USD $1.172115
≥500 USD $1.10577
≥1000 USD $1.04318
Inventory: 9090
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 9.7mm
Length 9.7mm
Height 9.9mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Operating Supply Voltage 250V
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 4
Lead Pitch 3mm
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.290 7.37mm
Pitch 3mm
Current Rating (Amps) 5A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -25°C
Max Operating Temperature 105°C
Number of Positions 4
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series WR-MPC3
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Number of Pins 4
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 21 Weeks
