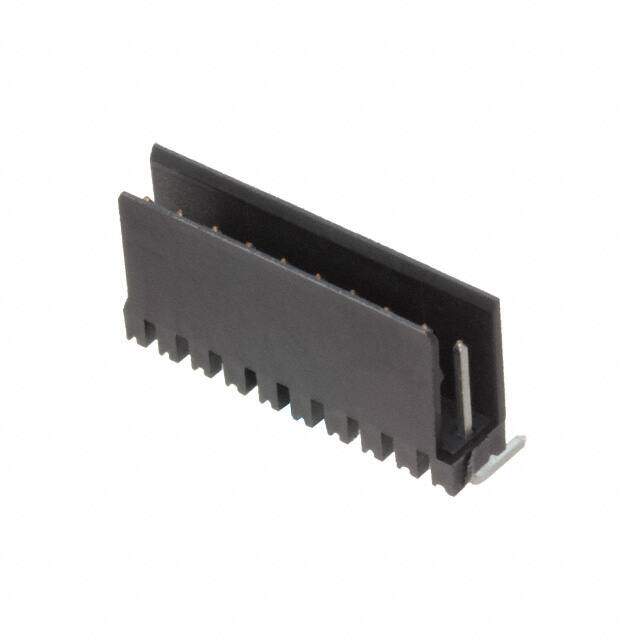

66101011722
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.185124
≥1 USD $1.185124
≥10 USD $1.118046
≥100 USD $1.054757
≥500 USD $0.995058
≥1000 USD $0.93873
Inventory: 1741
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Contact Length - Mating 0.272 6.90mm
Contact Finish - Post Tin
Shrouding Shrouded - 2 Wall
Contact Length - Post 0.114 2.90mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.197 5.00mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 50VAC
Number of Rows 1
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-WTB
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Insulation Material Polyamide (PA46), Nylon 4/6
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
