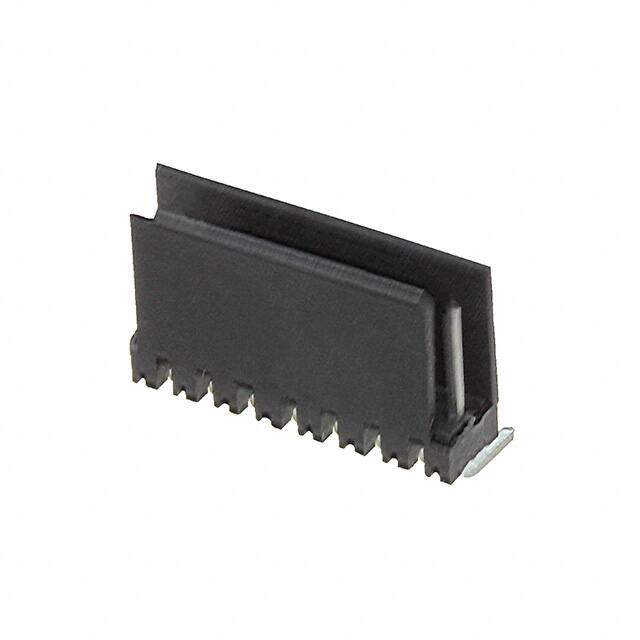

66100811722
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 8POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.97
Unit Price: USD $0.972786
≥1 USD $0.972786
≥10 USD $0.917723
≥100 USD $0.865781
≥500 USD $0.816774
≥1000 USD $0.770545
Inventory: 1125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA46), Nylon 4/6
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WR-WTB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Number of Rows 1
Voltage - Rated 50VAC
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Insulation Height 0.197 5.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 2 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.272 6.90mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
