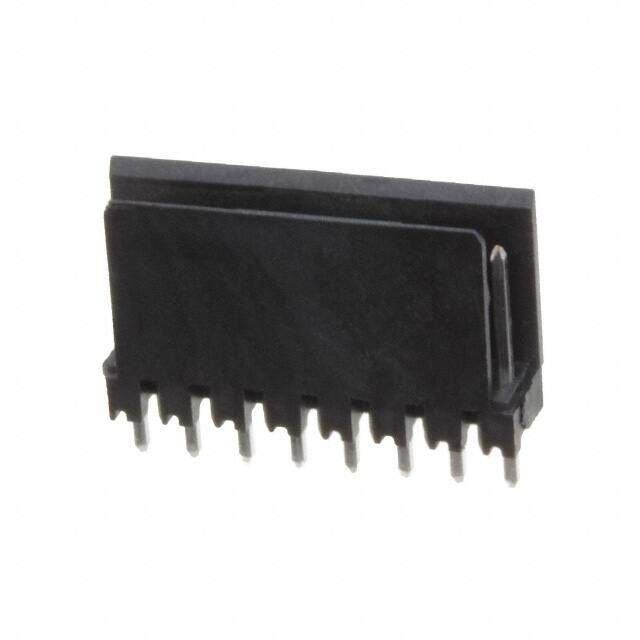

66100811622
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 8POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.52553
≥1 USD $0.52553
≥10 USD $0.495785
≥100 USD $0.467719
≥500 USD $0.441245
≥1000 USD $0.41627
Inventory: 4760
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Technical
Overall Contact Length 0.496 12.60mm
Contact Length - Mating 0.276 7.00mm
Contact Finish - Post Tin
Shrouding Shrouded - 2 Wall
Contact Length - Post 0.118 3.00mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.445 11.30mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 50VAC
Number of Rows 1
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-WTB
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Insulation Material Polyamide (PA46), Nylon 4/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
