653105124022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

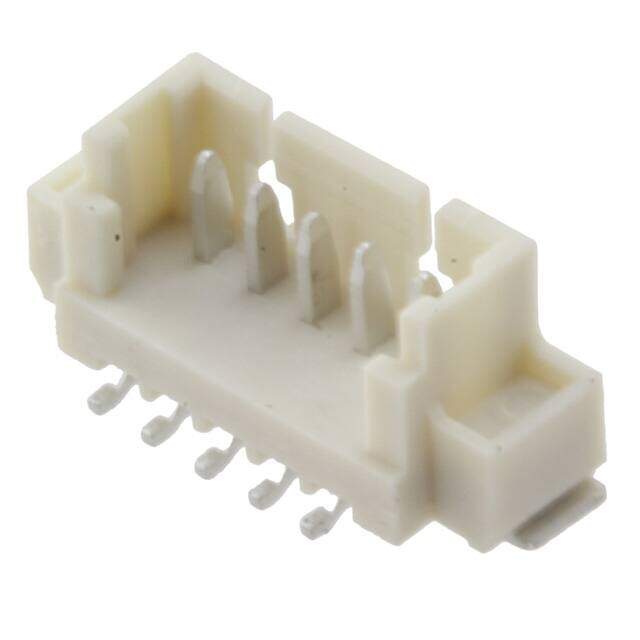

CONN HEADER SMD 5POS 1.25MM
PDF
/
Buying Options
Total Price: USD $1.8
Unit Price: USD $1.79754
≥1 USD $1.79754
≥10 USD $1.69579
≥100 USD $1.599804
≥500 USD $1.509252
≥1000 USD $1.423817
Inventory: 1134
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 11mm
Length 11mm
Height 4.75mm
Technical
Insulation Insulated
Insulation Resistance 100MOhm
Contact Resistance 20mOhm
Operating Supply Voltage 125V
Contact Gender Male
Contact Length - Mating 0.085 2.15mm
Contact Finish - Post Tin
Number of Contacts 5
Lead Pitch 1.25mm
Shrouding Shrouded - 4 Wall
Insulation Color Beige
Pitch - Mating 0.049 1.25mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.187 4.75mm
Orientation Vertical
Pitch 1.25mm
Current Rating (Amps) 1A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Detent Lock
Voltage - Rated 125V
Gender Male
Number of Rows 1
Color Beige, White
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 5
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series WR-WTB
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA46), Nylon 4/6
Contact Shape Rectangular
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 12 Weeks
