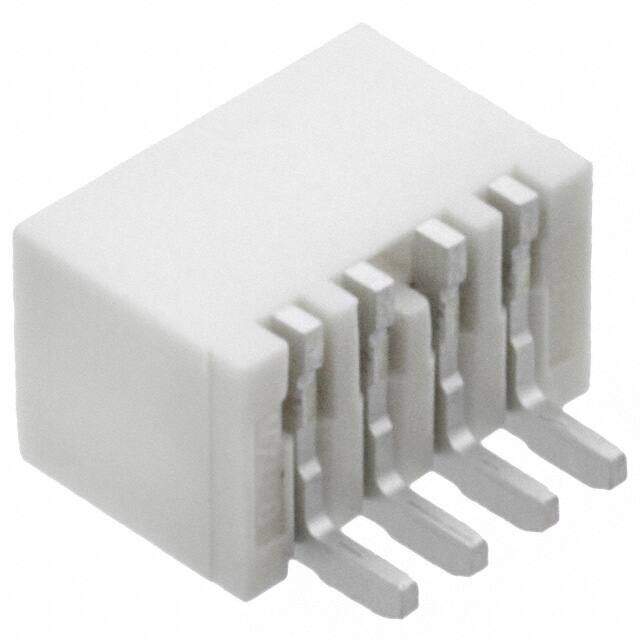

653103131822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 3POS 1.25MM
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.426438
≥1 USD $1.426438
≥10 USD $1.345702
≥100 USD $1.269524
≥500 USD $1.197669
≥1000 USD $1.129873
Inventory: 7368
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Rectangular
Insulation Material Polyamide (PA46), Nylon 4/6
Housing Material Nylon
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series WR-WTB
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 3
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Beige, White
Number of Rows 1
Gender Male
Voltage - Rated 125V
Fastening Type Detent Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 1A
Pitch 1.25mm
Insulation Height 0.134 3.40mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.049 1.25mm
Insulation Color Beige
Shrouding Shrouded - 4 Wall
Lead Pitch 1.25mm
Number of Contacts 3
Contact Finish - Post Tin
Contact Length - Mating 0.084 2.13mm
Contact Gender Male
Operating Supply Voltage 125V
Contact Resistance 20mOhm
Insulation Resistance 100MOhm
Dimensions
Height 5.4mm
Length 3.4mm
Width 8.5mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
