649024221732
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

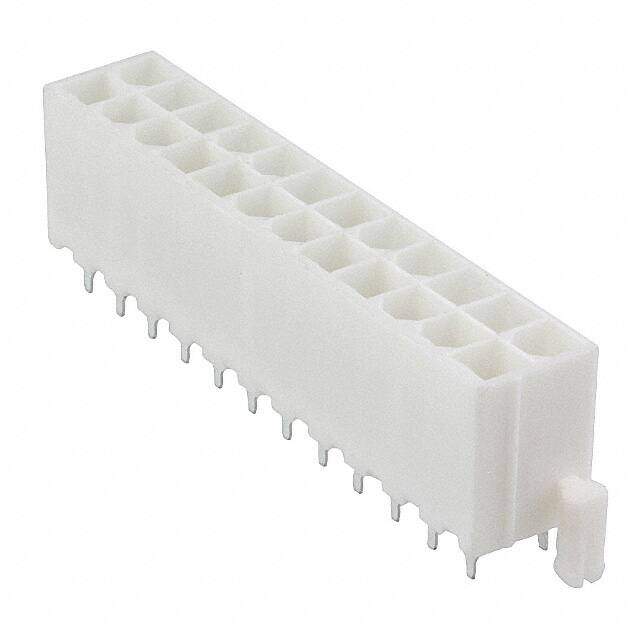

CONN HEADER VERT 24POS 4.2MM
PDF
/
Buying Options
Total Price: USD $1.35
Unit Price: USD $1.349576
≥1 USD $1.349576
≥10 USD $1.27319
≥100 USD $1.201118
≥500 USD $1.13313
≥1000 USD $1.068993
Inventory: 980
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 24
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-MPC4
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 24
Color White
Number of Rows 2
Gender Male
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 6A
Pitch 4.191mm
Orientation Vertical
Insulation Height 0.504 12.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color White
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Lead Pitch 4.2mm
Number of Contacts 24
Contact Finish - Post Tin
Operating Supply Voltage 600V
Contact Resistance 10mOhm
Dimensions
Height 12.8mm
Length 9.6mm
Width 51.6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
