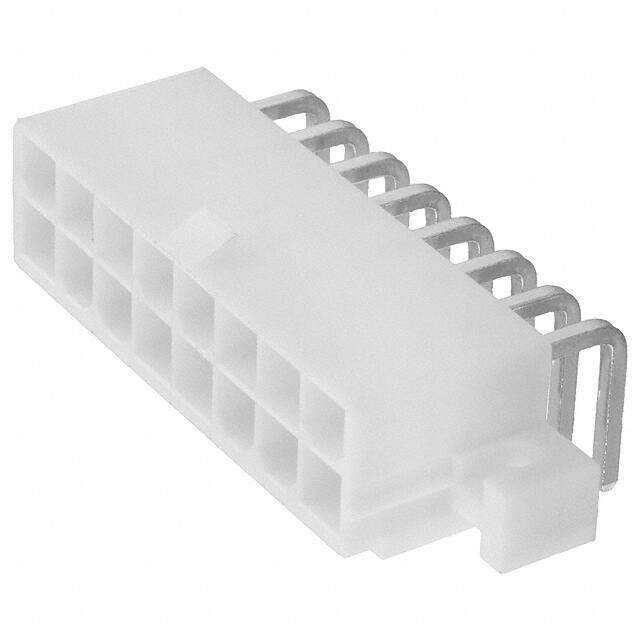

64901621022 image
Favorite
64901621022 image
Favorite

64901621022

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER R/A 16POS 4.2MM
PDF
/
Inventory: 8430
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0

Dimensions

Width 34.9mm
Length 9.6mm
Height 12.8mm

Technical

Contact Resistance 10mOhm
Operating Supply Voltage 600V
Contact Finish - Post Tin
Number of Contacts 16
Lead Pitch 4.2mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color White
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.394 10.00mm
Pitch 4.191mm
Current Rating (Amps) 6A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 600V
Gender Male
Number of Rows 2
Color White
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mounting Flange
Series WR-MPC4
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Number of Pins 16
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 16 Weeks
