64901021122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

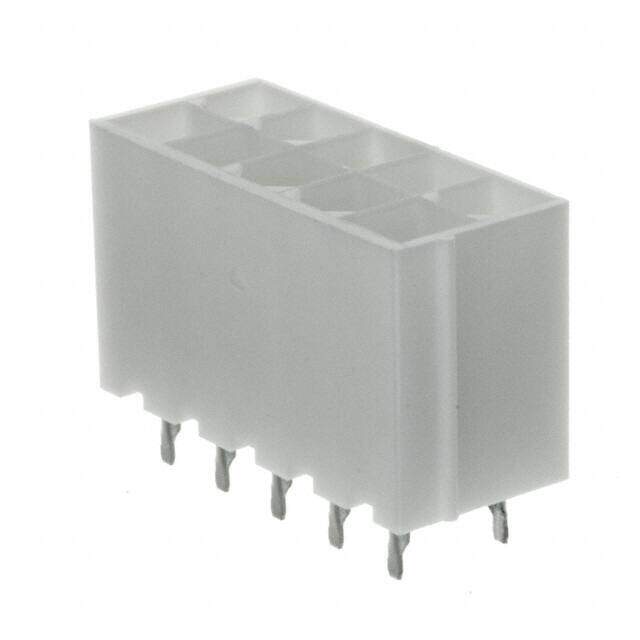

CONN HEADER VERT 10POS 4.2MM
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 130
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 10
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-MPC4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color White
Number of Rows 2
Gender Male
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 7A
Pitch 4.2mm
Orientation Vertical
Insulation Height 0.504 12.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 7A
Pitch - Mating 0.165 4.20mm
Insulation Color White
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Lead Pitch 4.2mm
Number of Contacts 10
Contact Finish - Post Tin
Contact Gender Male
Operating Supply Voltage 600V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 12.8mm
Length 22.3mm
Width 22.3mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
