649008227222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

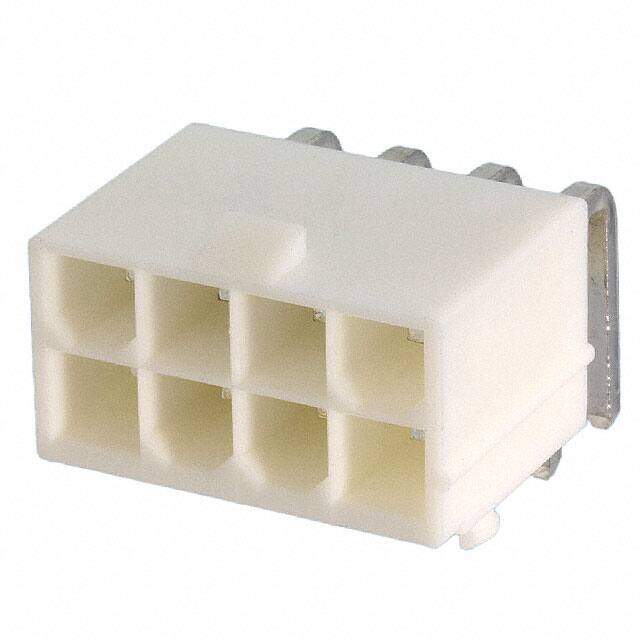

CONN HEADER R/A 8POS 4.2MM
PDF
/
Buying Options
Total Price: USD $2.64
Unit Price: USD $2.639675
≥1 USD $2.639675
≥10 USD $2.490261
≥100 USD $2.349299
≥500 USD $2.21633
≥1000 USD $2.090869
Inventory: 7203
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Nickel
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 8
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-MPC4
Feature Board Lock
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color White
Number of Rows 2
Gender Male
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 7A
Pitch 4.2mm
Insulation Height 0.394 10.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 7A
Pitch - Mating 0.165 4.20mm
Insulation Color White
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Lead Pitch 4.2mm
Number of Contacts 8
Contact Finish - Post Tin
Contact Gender Male
Operating Supply Voltage 600V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 12.8mm
Length 18mm
Width 18.1mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
