64900621022
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

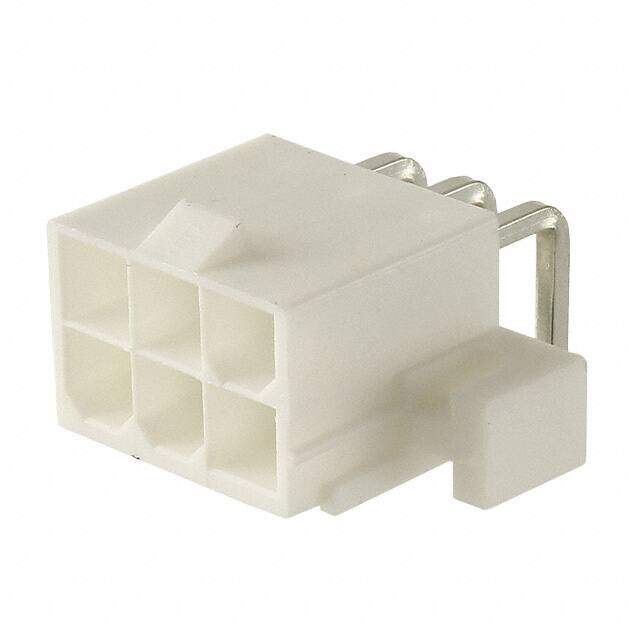

CONN HEADER R/A 6POS 4.2MM
PDF
/
Buying Options
Total Price: USD $0.87
Unit Price: USD $0.870353
≥1 USD $0.870353
≥10 USD $0.82108
≥100 USD $0.774607
≥500 USD $0.730765
≥1000 USD $0.689398
Inventory: 6449
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 13.9mm
Length 9.6mm
Height 12.8mm
Technical
Contact Resistance 10mOhm
Operating Supply Voltage 600V
Contact Finish - Post Tin
Number of Contacts 6
Lead Pitch 4.2mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color White
Pitch - Mating 0.165 4.20mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.394 10.00mm
Pitch 4.191mm
Current Rating (Amps) 8A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 600V
Gender Male
Number of Rows 2
Color White
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mounting Flange
Series WR-MPC4
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Number of Pins 6
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 16 Weeks
