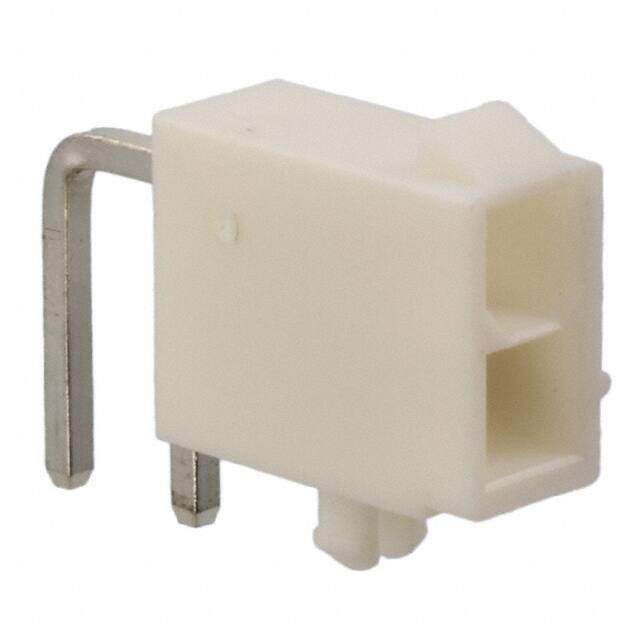

649002227222
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 2POS
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.991055
≥1 USD $0.991055
≥10 USD $0.934958
≥100 USD $0.882036
≥500 USD $0.832111
≥1000 USD $0.785012
Inventory: 4730
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 5.5mm
Length 5.4mm
Height 12.8mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Operating Supply Voltage 600V
Contact Gender Male
Contact Finish - Post Tin
Number of Contacts 2
Lead Pitch 4.2mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.165 (4.20mm)
Insulation Color White
Current Rating 9A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.394 10.00mm
Pitch 4.2mm
Current Rating (Amps) 9A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Voltage - Rated 600V
Gender Male
Number of Rows 2
Color White
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series WR-MPC4
Packaging Tray
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Number of Pins 2
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Tin
Contact Material Nickel
Supply Chain
Factory Lead Time 16 Weeks
