64900211122
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

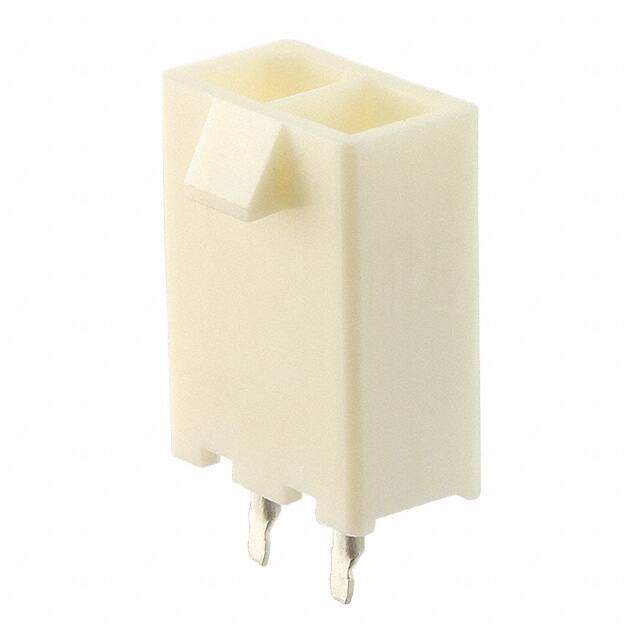

CONN HEADER VERT 2POS 4.2MM
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.6378
≥1 USD $1.6378
≥10 USD $1.34425
≥100 USD $1.30245
≥500 USD $1.26065
≥1000 USD $1.2179
Inventory: 7994
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Number of Pins 2
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series WR-MPC4
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 2
Color White
Number of Rows 1
Gender Male
Voltage - Rated 600V
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 9A
Pitch 4.191mm
Orientation Vertical
Insulation Height 0.504 12.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color White
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
Lead Pitch 4.2mm
Number of Contacts 2
Contact Finish - Post Tin
Operating Supply Voltage 600V
Contact Resistance 10mOhm
Dimensions
Height 12.8mm
Length 5.4mm
Width 13.8mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
