62403621722
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

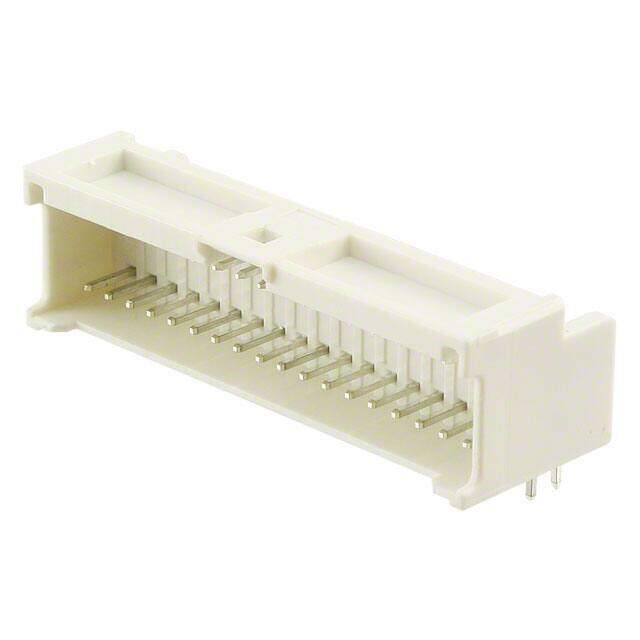

CONN HEADER R/A 36POS 2MM
PDF
/
Inventory: 2509
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material Polyester
Technical
Operating Temperature -25°C~85°C
Packaging Tube
Series WR-WTB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 36
Color White
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.0066mm
Insulation Height 0.453 11.50mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color White
Row Spacing - Mating 0.197 (5.00mm)
Contact Length - Post 0.126 3.20mm
Shrouding Shrouded - 4 Wall
Lead Pitch 2mm
Number of Contacts 36
Contact Finish - Post Tin
Contact Gender Male
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Dimensions
Height 11.7mm
Length 14.5mm
Width 39.4mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
