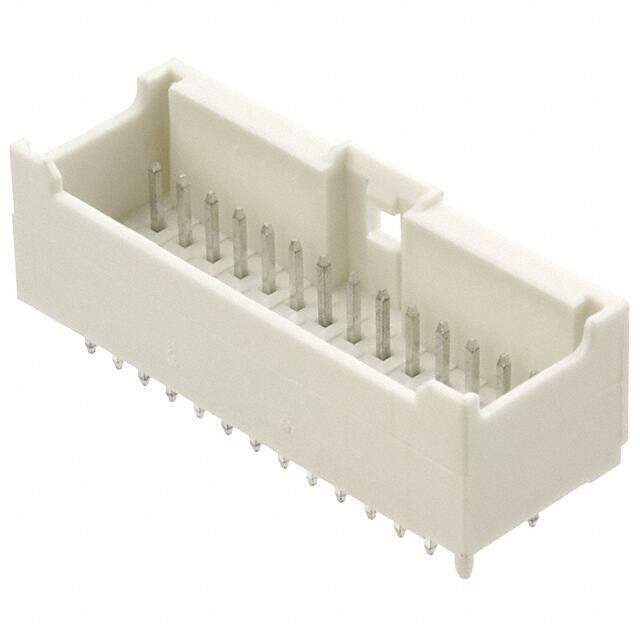

62402821622
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 28POS 2MM
PDF
/
Inventory: 6137
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Shrouding Shrouded - 4 Wall
Lead Pitch 2mm
Number of Contacts 28
Contact Finish - Post Tin
Contact Gender Male
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.197 (5.00mm)
Insulation Color White
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.364 9.25mm
Orientation Vertical
Pitch 2.0066mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Latch Holder
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color White
Number of Positions 28
Connector Type Header
Termination Press-Fit, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide
Series WR-WTB
Packaging Tube
Operating Temperature -25°C~85°C
Dimensions
Height 9.75mm
Length 11.5mm
Width 31.4mm
Stack Height (Mating) 11.6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Physical
Housing Material Polyester
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
