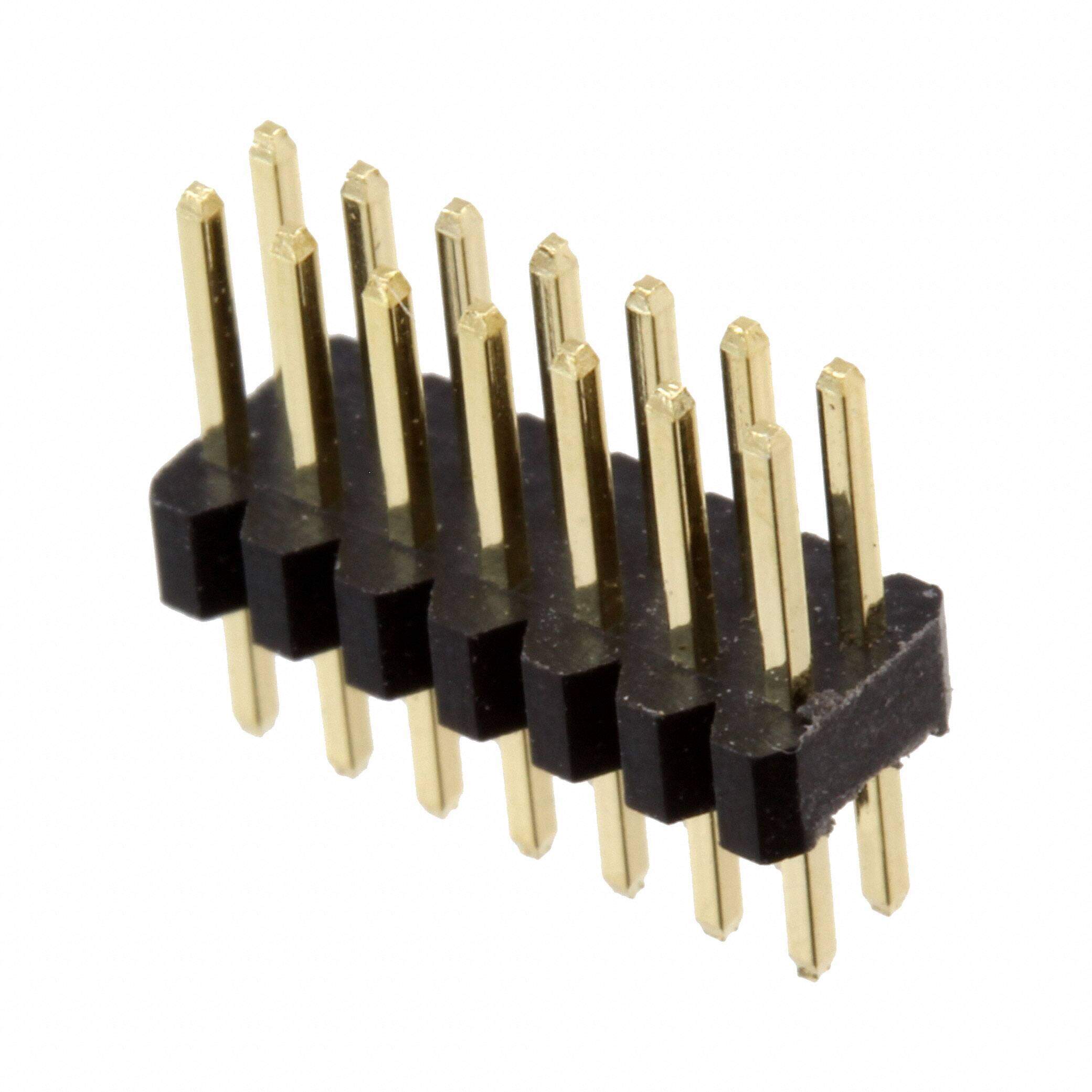

62201421121 image
Favorite
62201421121 image
Favorite

62201421121

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 14POS 1.27MM
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.236944
≥1 USD $1.236944
≥10 USD $1.166931
≥100 USD $1.100876
≥500 USD $1.038559
≥1000 USD $0.979775
Inventory: 3315
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Number of Pins 14
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T

Technical

Operating Temperature -40°C~125°C
Packaging Bulk
Series WR-PHD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 50V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Pitch 1.27mm
Orientation Vertical
Insulation Height 0.059 1.50mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Contact Length - Post 0.091 2.30mm
Shrouding Unshrouded
Lead Pitch 1.27mm
Number of Contacts 14
Contact Length - Mating 0.150 3.81mm
Operating Supply Voltage 100V
Overall Contact Length 0.299 7.60mm
Contact Resistance 20mOhm

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
