620105131822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

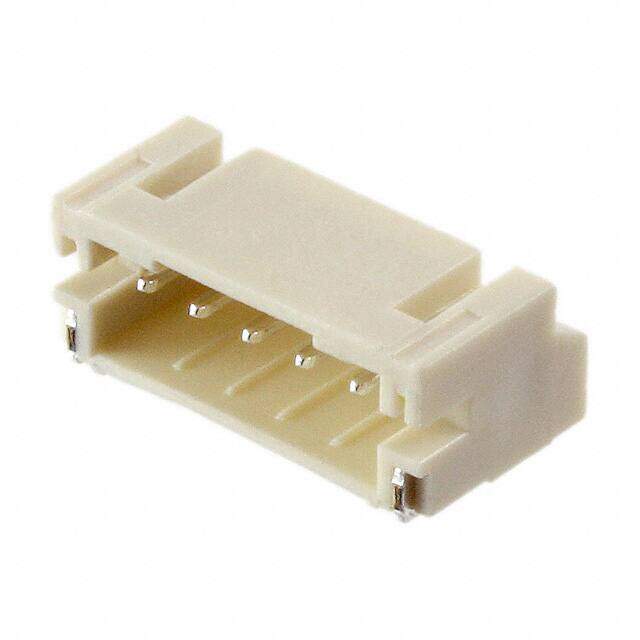

CONN HEADER SMD R/A 5POS 2MM
PDF
/
Buying Options
Total Price: USD $1.18
Unit Price: USD $1.177975
≥1 USD $1.177975
≥10 USD $1.111304
≥100 USD $1.048392
≥500 USD $0.989055
≥1000 USD $0.933069
Inventory: 1169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA9T), Nylon 9T
Housing Material Nylon
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Series WR-WTB
Feature Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Beige, White
Number of Rows 1
Gender Male
Voltage - Rated 100V
Fastening Type Detent Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 2A
Pitch 2mm
Insulation Height 0.220 5.60mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.079 2.00mm
Insulation Color Beige
Shrouding Shrouded - 4 Wall
Lead Pitch 2mm
Number of Contacts 5
Contact Finish - Post Tin
Contact Length - Mating 0.141 3.60mm
Contact Gender Male
Operating Supply Voltage 100V
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 5.6mm
Length 14mm
Width 14mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
