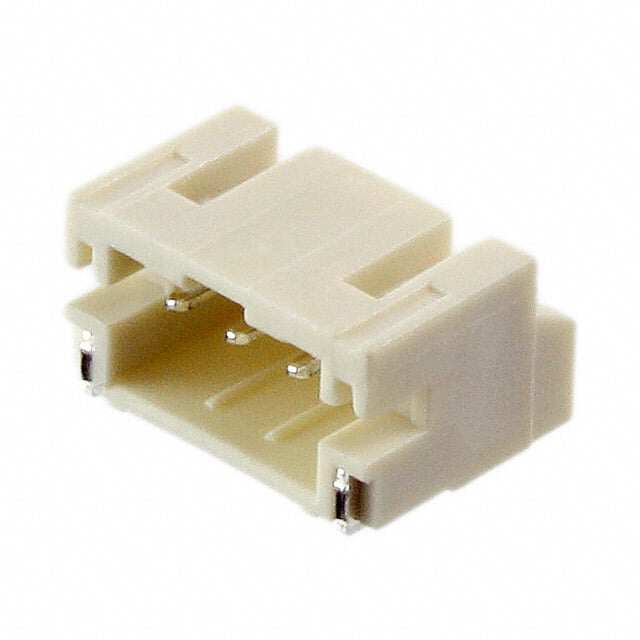

620103131822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD R/A 3POS 2MM
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.957882
≥1 USD $0.957882
≥10 USD $0.903669
≥100 USD $0.852514
≥500 USD $0.804262
≥1000 USD $0.75874
Inventory: 4359
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Width 10mm
Length 10mm
Height 5.6mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Operating Supply Voltage 100V
Contact Gender Male
Contact Length - Mating 0.141 3.60mm
Contact Finish - Post Tin
Number of Contacts 3
Lead Pitch 2mm
Shrouding Shrouded - 4 Wall
Insulation Color Beige
Pitch - Mating 0.079 2.00mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.220 5.60mm
Pitch 2mm
Current Rating (Amps) 2A
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Detent Lock
Voltage - Rated 100V
Gender Male
Number of Rows 1
Color Beige, White
Min Operating Temperature -25°C
Max Operating Temperature 85°C
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series WR-WTB
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA9T), Nylon 9T
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Tin
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 11 Weeks
