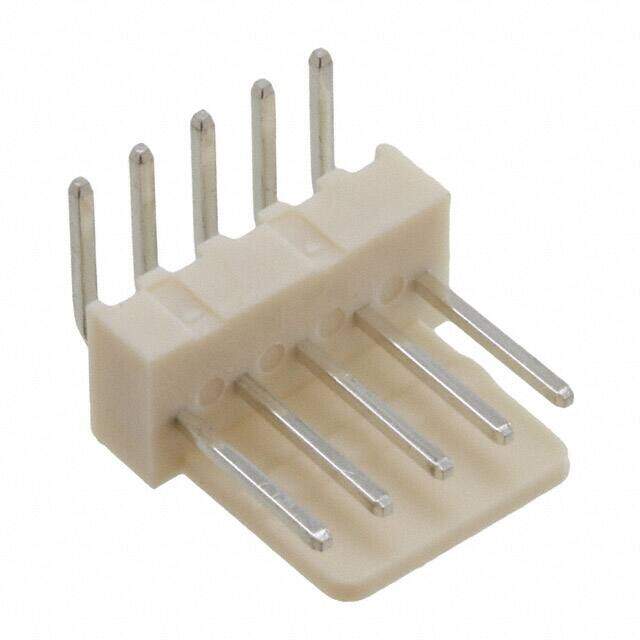

61900519521
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 5POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.891969
≥1 USD $0.891969
≥10 USD $0.841481
≥100 USD $0.79386
≥500 USD $0.748914
≥1000 USD $0.706524
Inventory: 1565
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA66), Nylon 6/6
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-WTB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 5
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Beige
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Friction Lock
Contact Finish - Mating Tin
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.228 5.80mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Beige
Contact Length - Post 0.134 3.40mm
Shrouding Shrouded - 1 Wall
Lead Pitch 2.54mm
Number of Contacts 5
Contact Finish - Post Tin
Contact Length - Mating 0.295 7.49mm
Contact Gender Male
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 3.3mm
Length 12.7mm
Width 12.7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
