61301811121
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

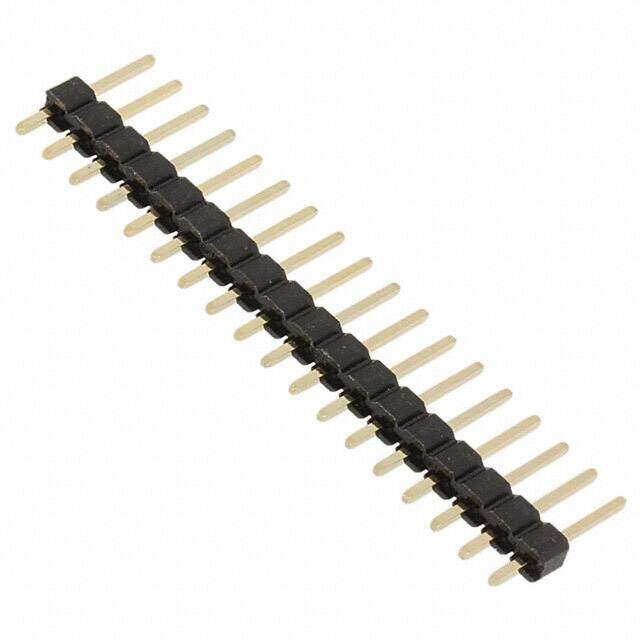

CONN HEADER VERT 18POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.824783
≥1 USD $0.824783
≥10 USD $0.778101
≥100 USD $0.734051
≥500 USD $0.692505
≥1000 USD $0.653299
Inventory: 993
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Number of Pins 18
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Series WR-PHD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 18
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Orientation Vertical
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.118 3.00mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 18
Contact Length - Mating 0.236 6.00mm
Operating Supply Voltage 250V
Overall Contact Length 0.454 11.54mm
Contact Resistance 20mOhm
Dimensions
Height 8.89mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
