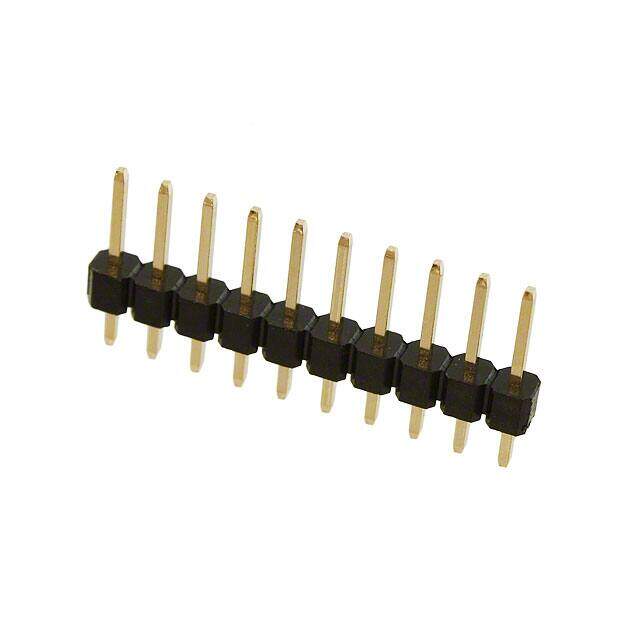

61301011121 image
Favorite
61301011121 image
Favorite

61301011121

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 10POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.766821
≥1 USD $0.766821
≥10 USD $0.72341
≥100 USD $0.682468
≥500 USD $0.643835
≥1000 USD $0.60739
Inventory: 932
Minimum: 1
-
+

Technical Details

Compliance

Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0

Dimensions

Width 25.4mm
Length 2.54mm
Height 11.54mm

Technical

Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Overall Contact Length 0.454 11.54mm
Operating Supply Voltage 250V
Contact Gender Male
Contact Length - Mating 0.236 6.00mm
Number of Contacts 10
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.118 3.00mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Orientation Vertical
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-PHD
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Number of Pins 10
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 14 Weeks
