61300711021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

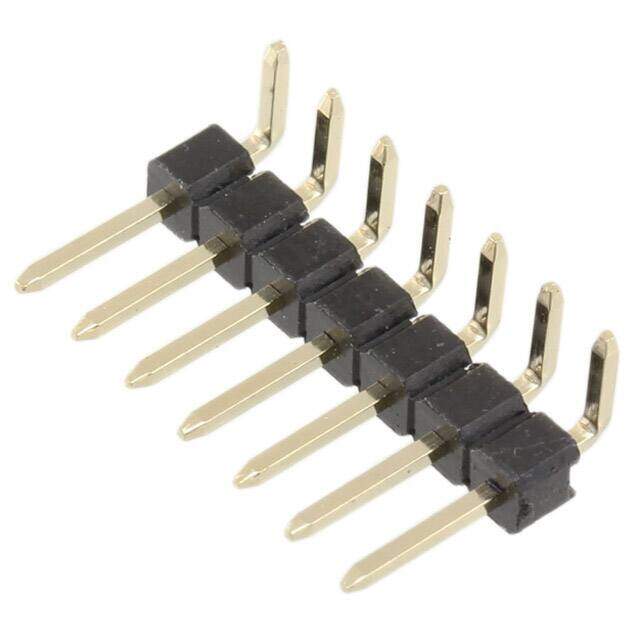

CONN HEADER R/A 7POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.615431
≥1 USD $0.615431
≥10 USD $0.580596
≥100 USD $0.54773
≥500 USD $0.516736
≥1000 USD $0.487483
Inventory: 7857
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Technical
Contact Resistance 20mOhm
Operating Supply Voltage 250V
Contact Length - Mating 0.236 6.00mm
Number of Contacts 7
Lead Pitch 2.54mm
Shrouding Unshrouded
Contact Length - Post 0.118 3.00mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Number of Positions 7
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-PHD
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Number of Pins 7
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 14 Weeks
