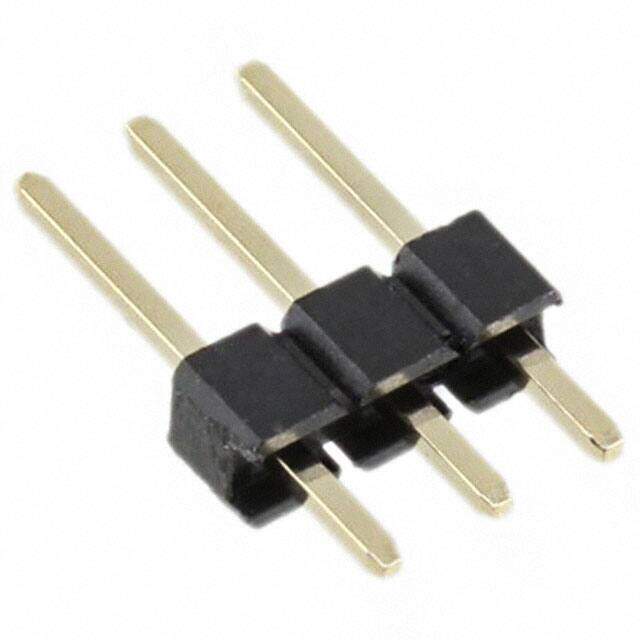

61300311121 image
Favorite
61300311121 image
Favorite

61300311121

Würth Elektronik
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 3POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.16
Unit Price: USD $0.1615
≥1 USD $0.1615
≥10 USD $0.133
≥100 USD $0.12825
≥500 USD $0.12445
≥1000 USD $0.12065
≥5000 USD $0.10735
Inventory: 1087
Minimum: 1
-
+

Technical Details

Technical

Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.118 3.00mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 3
Contact Length - Mating 0.236 6.00mm
Operating Supply Voltage 250V
Overall Contact Length 0.454 11.54mm
Contact Resistance 20mOhm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Orientation Vertical
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250V
Gender Male
Number of Rows 1
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 3
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series WR-PHD
Packaging Bulk
Operating Temperature -40°C~105°C

Compliance

Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free

Physical

Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Number of Pins 3
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 14 Weeks
