61300311021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

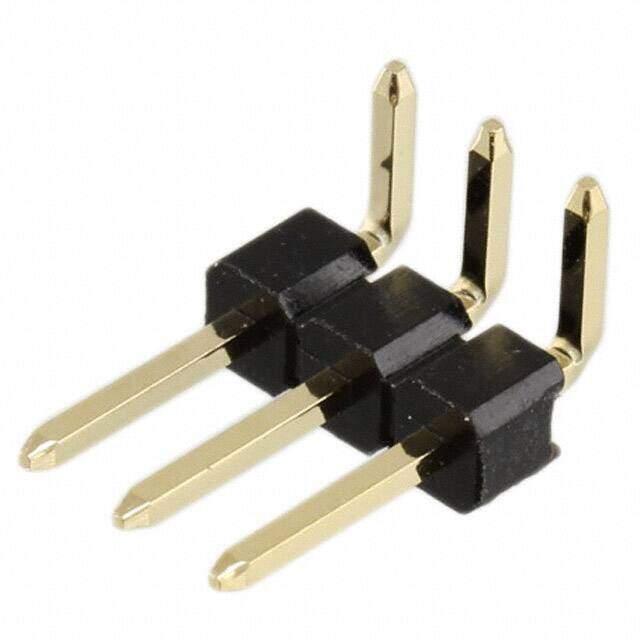

CONN HEADER R/A 3POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.456544
≥1 USD $0.456544
≥10 USD $0.447387
≥100 USD $0.440847
Inventory: 11
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 3
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series WR-PHD
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 3
Color Black
Number of Rows 1
Gender Male
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.118 3.00mm
Shrouding Unshrouded
Lead Pitch 2.54mm
Number of Contacts 3
Contact Length - Mating 0.236 6.00mm
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
