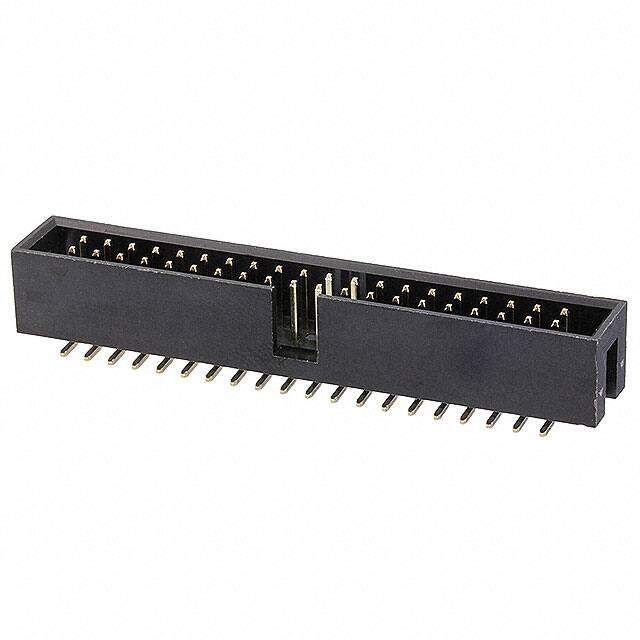

61234020621
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER SMD 40POS 2.54MM
PDF
/
Buying Options
Total Price: USD $6.15
Unit Price: USD $6.146338
≥1 USD $6.146338
≥10 USD $5.798432
≥100 USD $5.470225
≥500 USD $5.16059
≥1000 USD $4.868479
Inventory: 989
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Number of Pins 40
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WR-BHD
Feature Keying Slot, Pick and Place
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 40
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Orientation Vertical
Insulation Height 0.362 9.20mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Shrouding Shrouded - 4 Wall
Lead Pitch 2.54mm
Number of Contacts 40
Contact Length - Mating 0.197 5.00mm
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
