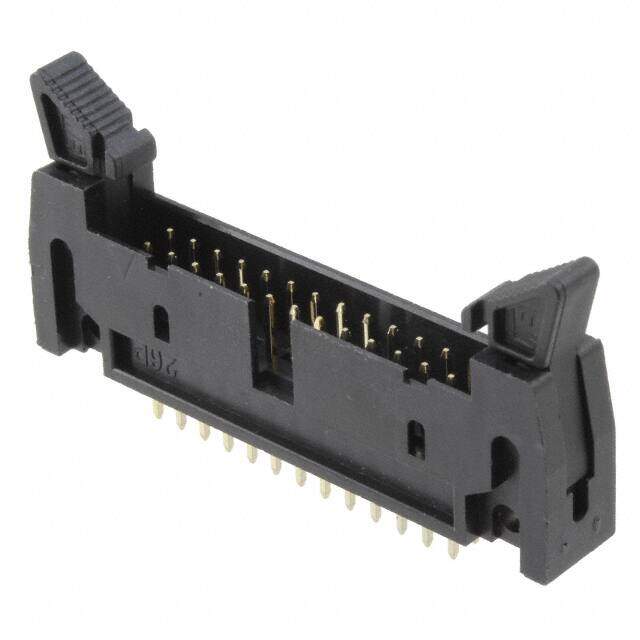

61202622021
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 26POS 2.54MM
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.499892
≥1 USD $2.499892
≥10 USD $2.358386
≥100 USD $2.224897
≥500 USD $2.098963
≥1000 USD $1.980151
Inventory: 6204
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Number of Pins 26
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WR-BHD
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 26
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Latch Lock/Eject Hooks, Short
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Orientation Vertical
Insulation Height 0.669 17.00mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.134 3.40mm
Shrouding Shrouded - 4 Wall
Lead Pitch 2.54mm
Number of Contacts 26
Contact Length - Mating 0.224 5.70mm
Contact Gender Male
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 8.3mm
Length 30.48mm
Width 52.3mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
