61201622121
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

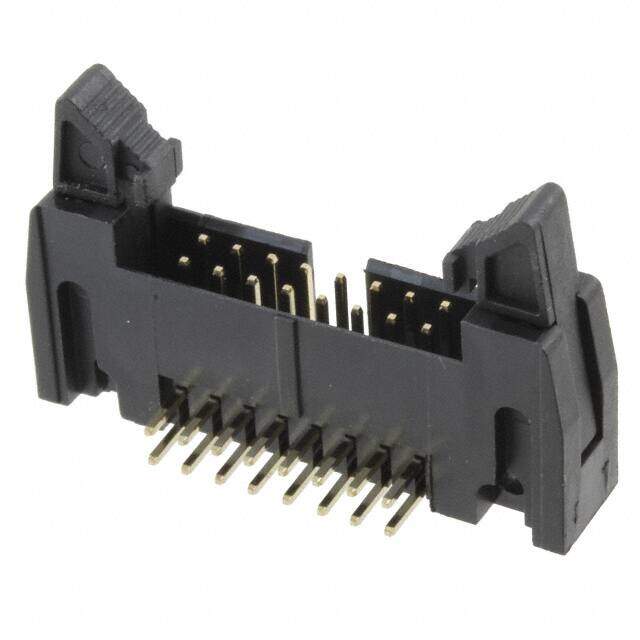

CONN HEADER R/A 16POS 2.54MM
PDF
/
Inventory: 9260
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Material Flammability Rating UL94 V-0
Dimensions
Width 39.62mm
Length 17.78mm
Height 8.3mm
Technical
Insulation Insulated
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Operating Supply Voltage 250V
Contact Gender Male
Contact Length - Mating 0.224 5.70mm
Number of Contacts 16
Lead Pitch 2.54mm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.134 3.40mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.327 8.30mm
Orientation Right Angle
Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Short
Voltage - Rated 250V
Gender Male
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Number of Positions 16
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot
Series WR-BHD
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Housing Material PBT
Insulation Material Polybutylene Terephthalate (PBT)
Contact Shape Square
Number of Pins 16
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 15 Weeks
Alternative Model
