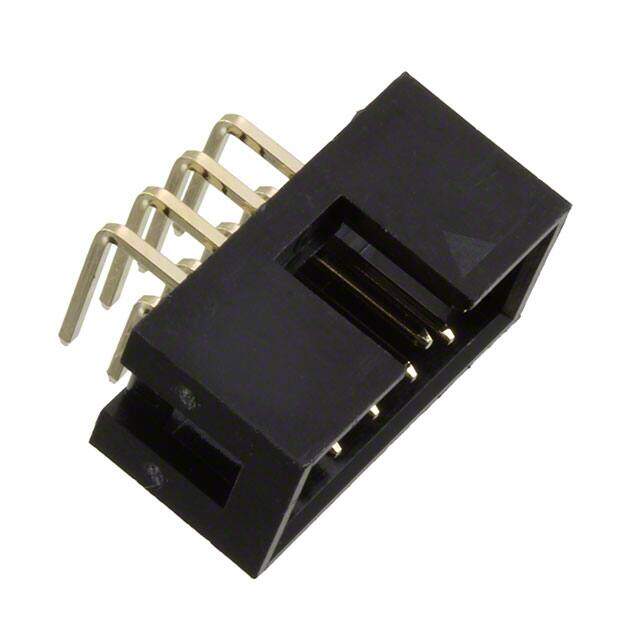

61200821721
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER R/A 8POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.93501
≥1 USD $0.93501
≥10 USD $0.88209
≥100 USD $0.832147
≥500 USD $0.785048
≥1000 USD $0.740605
Inventory: 8802
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 8
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT)
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WR-BHD
Feature Keying Slot
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 8
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 250V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 3A
Pitch 2.54mm
Insulation Height 0.358 9.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Lead Pitch 2.54mm
Number of Contacts 8
Operating Supply Voltage 250V
Contact Resistance 20mOhm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
