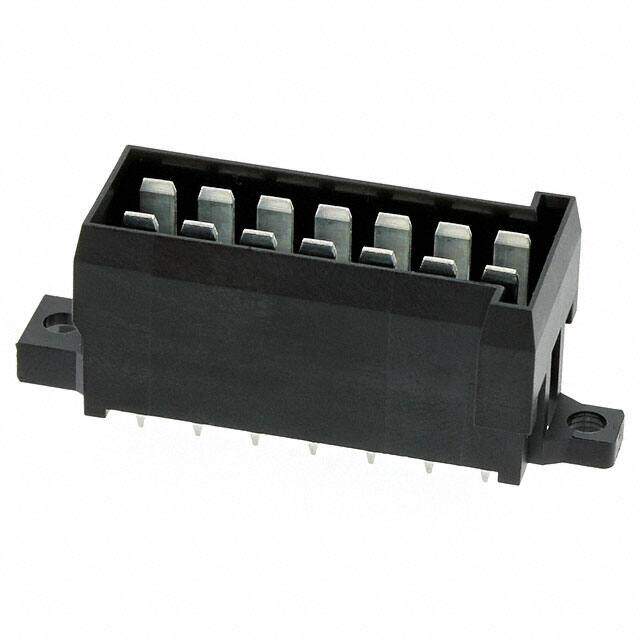

963357-3 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description AMP FROM TE CONNECTIVITY 963357-3 Connector Housing, Junior Power Timer Series, Plug, 14 Ways, Junior Power Timer Contacts
PDF
/
Buying Options
Total Price: USD $5.95
Unit Price: USD $5.9488
≥1 USD $5.9488
≥10 USD $5.1876
≥100 USD $4.586639
≥500 USD $3.84949
Inventory: 1381
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Width - Tab 3mm
Tab Thickness 800μm
Width 20mm
Length 51.1mm

Technical

Circuit Application Signal
Number of Ports 1
ELV Compliant
Empty Shell YES
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.366 9.30mm
Contact Length - Post 0.134 3.40mm
Row Spacing - Mating 0.217 (5.51mm)
Pitch - Mating 0.197 5.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.720 18.30mm
Depth 20mm
Shielding Unshielded
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Tab
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Silver
Number of Rows 2
Number of Positions 14
Connector Type Plug
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Mounting Flange
Series Junior Power Timer
Published 2006
Packaging Bulk

Physical

Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Rectangular
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Zinc

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 28 Weeks
