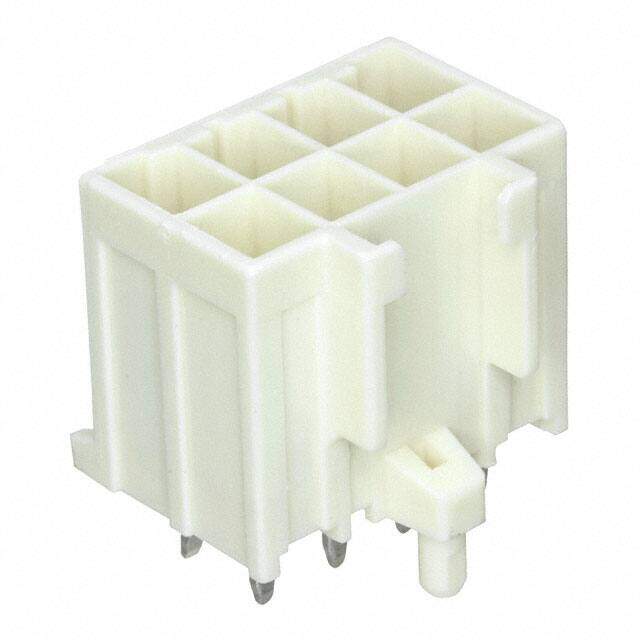

917845-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Power to the Board AMP PWR TAB HDR ASY 8P V
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.8832
≥1 USD $1.8832
≥10 USD $1.67464
≥100 USD $1.666368
≥500 USD $1.649296
≥1000 USD $1.504501
Inventory: 1632
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Plating Thickness 31.49μm
Technical
Contact Retention Without
Number of Signal Positions 0
Number of Power Positions 8
Circuit Application Power
Contact Current Rating 8A
Sealable No
ELV Compliant
Operating Supply Voltage 50V
Empty Shell NO
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.150 3.81mm
Row Spacing - Mating 0.181 (4.60mm)
Insulation Color Natural
Pitch - Mating 0.156 3.96mm
Current Rating 8A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.575 14.60mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Tab
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Gender Male
Number of Rows 2
Min Operating Temperature -22°C
Max Operating Temperature 221°C
Connector Type Header
Termination Kinked Pin, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Guide
Series Power Double Lock
Published 1998
Packaging Tray
Physical
Housing Material Nylon
Shell Material GLASS FILLED POLYAMIDE66
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Contact Shape Rectangular
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Factory Lead Time 18 Weeks
