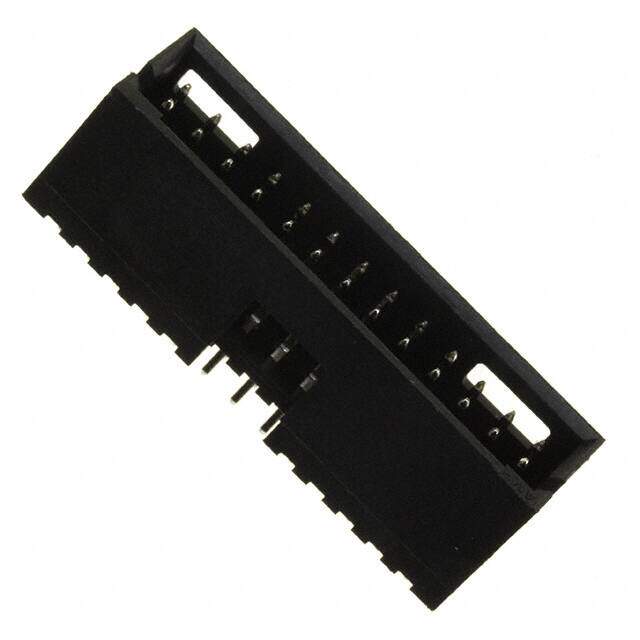

87589-9
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 26POS TIN
PDF
/
Inventory: 9597
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Length 35.86mm
Technical
Shrouded End Dimension 1.68 mm
High Temperature Housing No
Mating Post Length 8.08mm
Contact Current Rating 3A
ELV Non-Compliant
Insulation Resistance 5GOhm
Overall Contact Length 0.533 13.55mm
Lead Length 3.175mm
UL Flammability Code 94V-0
Contact Length - Mating 0.318 8.08mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.440 11.18mm
Depth 10.16mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin-Lead
Fastening Type Detent Lock
Gender Male
Number of Rows 2
Number of Positions 26
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Series AMPMODU Mod II
Published 2011
Packaging Tray
Operating Temperature -65°C~105°C
Physical
PCB Mounting Orientation Vertical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Nickel, Tin
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 10 Weeks
