87589-6
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

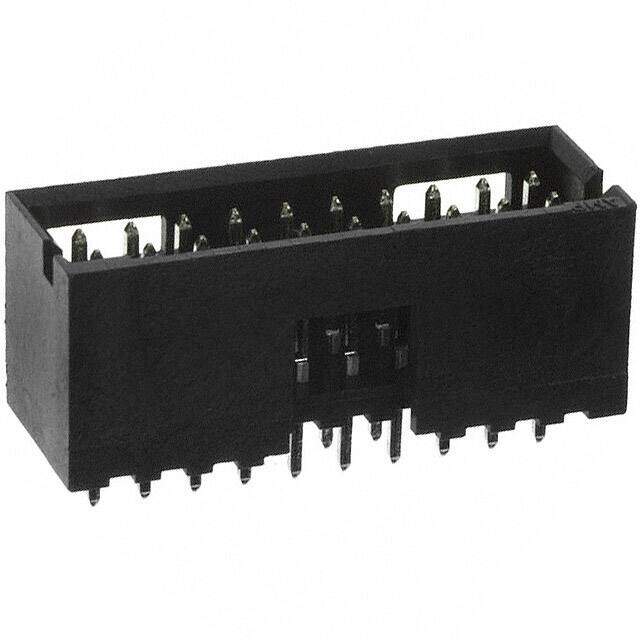

CONN HEADER VERT .100 20POS TIN
PDF
/
Inventory: 1961
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Lead, Nickel, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Housing Material Nylon
PCB Mounting Orientation Vertical
Technical
Operating Temperature -65°C~105°C
Packaging Tray
Published 2011
Series AMPMODU Mod II
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 20
Number of Rows 2
Gender Male
Fastening Type Detent Lock
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Straight
Depth 10.16mm
Insulation Height 0.440 11.18mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Approval Agency CSA
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.318 8.08mm
UL Flammability Code 94V-0
Lead Length 3.175mm
Overall Contact Length 0.533 13.55mm
Insulation Resistance 5GOhm
ELV Non-Compliant
Contact Current Rating 3A
Mating Post Length 8.08mm
High Temperature Housing No
Shrouded End Dimension 1.68 mm
Dimensions
Length 28.24mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
