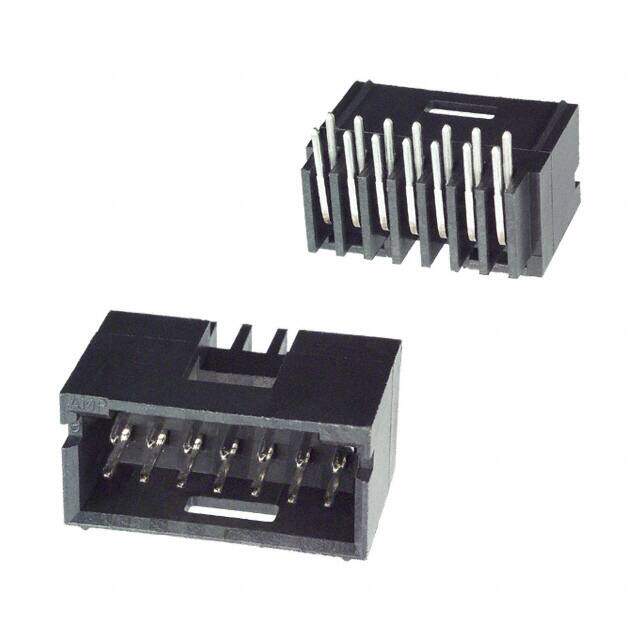

87579-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER RA .100 14POS TIN
PDF
/
Inventory: 1609
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Thermoplastic
Technical
Operating Temperature -65°C~105°C
Packaging Tray
Published 2011
Series AMPMODU Mod II
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 14
Number of Rows 2
Gender Male
Fastening Type Detent Lock
Contact Finish - Mating Tin-Lead
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A
Orientation Right Angle
Depth 16.23mm
Insulation Height 0.400 10.16mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code unknown
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.135 3.43mm
Shrouding Shrouded - 4 Wall
Contact Length - Mating 0.318 8.08mm
UL Flammability Code 94V-0
Dimensions
Length 20.62mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
